How Do You Wire A 4 Wire Condenser Fan Motor

Again, this is ac power and not a dual capacitor, so the terminal side does not matter. Replacing my old condenser fan motor and going from 3 wire (black, blue, and orange) to a new 5 wire ( brown yellow black purple and orange) i know where brown yellow and black go on new motor but orange and purple on diagram of new motor says it goes to a sedeways triangle and not sure what the symbol is if is contactor or start cap.

Air Conditioning Help Blog Appliance Masters Appliance

We have actually gathered numerous pictures, hopefully this image serves for you, as well as aid you in finding the answer you are trying to find.

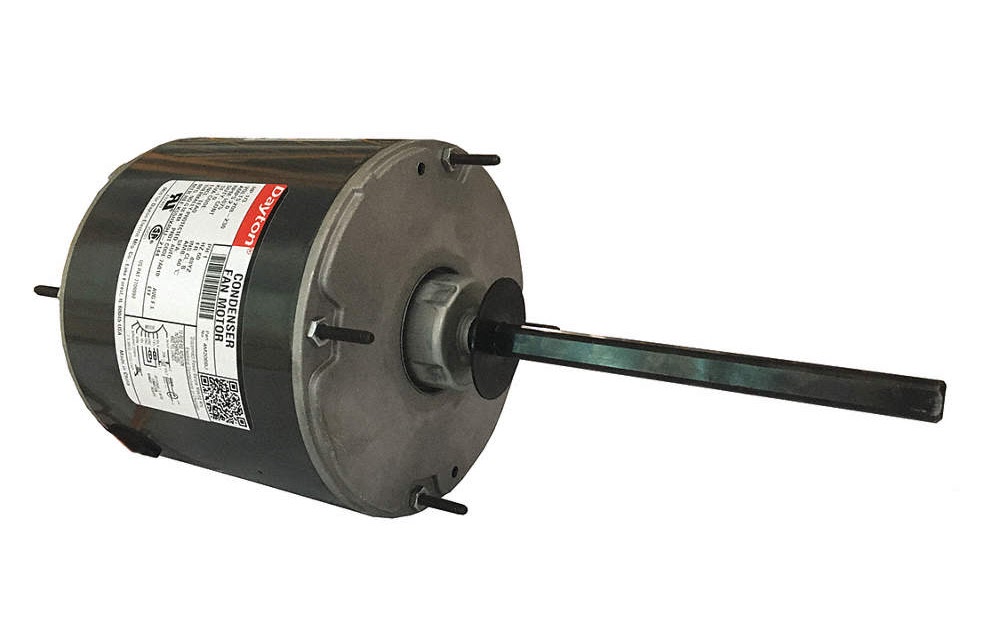

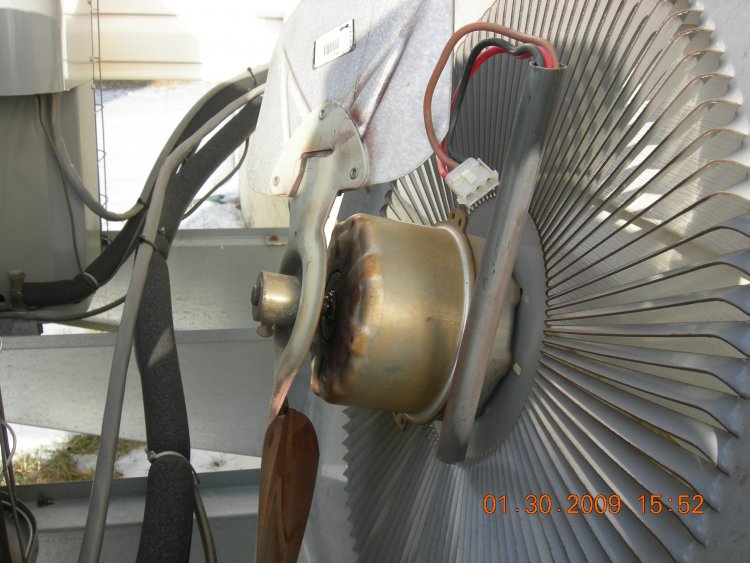

How do you wire a 4 wire condenser fan motor. Some condenser fans are pretty accessable and can be serviced by simply removing the top grate, removing the retaining screws / hardware, unpluging the motors electric connection and installing the exact replacement motor following the same steps in reverse order. It is preferable to do this test without the moving blade. White wire from the condenser fan motor to one side of power on the contactor (t1).

Secure in place with the screwdriver. Other condenser unit designs will require a more extensive disa continue reading Follow the 3 wire instructions i gave.

Replacing 3 wire condenser fan w/4 wire type. We hope you enjoyed it and if you want to download the pictures in high quality, simply right click the image and choose save as. About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features press copyright contact us creators.

Step 4 connect the orange wire to the contactor. Push the other wire with the pin terminal onto the run terminal of the air conditioning compressor. Screw the wire in place with the screwdriver.

I need some advice on how to hook up the wires and capacitor on the new ones. Using a single run capacitor with a four wire setup: The fan motor won't shut off during defrost.

Black wire from the condenser fan motor to the other side of power on the contactor (t2). Test the fourth set of wires: If you purchased a new condenser fan motor with a new single run capacitor, this will be the wiring setup that you’ll be using.

I purchased a new fan motor; If you wire it as a 4 wire motor to that oval dual cap. This is how to wire a 3 wire and 4 wire condenser fan motor into the outdoor unit.

Or, go out and buy a new single cap for the fan motor only if you really think you want to convert to a 4 wire set up. New capacitor has 2 connection points on it. Thanks for reading 4 wire and 3 wire condenser fan motor wiring!

4 wire condenser fan motor wiring diagram from www.doityourself.com print the wiring diagram off plus use highlighters to trace the signal. This will likely be back to your contactor. Push the wire with the one single pin terminal onto the start terminal of the air conditioning compressor.

I have a 9 year old bryant compressor fan motor (3 wires) in which the bearings went bad. The capacitor had 3 connection poits on it. You will now place the red probe on the common wire.

However, some people still struggle with the wiring part of the motor to the capacitor. Values measured in this phase of testing should be around fifteen ohms. 1 trick that we 2 to printing a similar wiring plan off twice.

In this video i go over how to wire a 3 wire hvac condenser fan motor and a 4 wire condenser fan motor. If you want it to work right in heating season. A quick guide for installing 4 wire condenser fan motors.

When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. How to wire a condenser fan motor. You’re going to wire the black lead to where the black lead on your previous condenser fan motor was wired to.

How to wire a furnace or ac blower motor. Brown wire from the condenser fan motor to the capacitor. (see the wiring diagram above).

Connect the line from the old starting relay to the spade terminal on the run wire (insulating sleeve). Keep the red test lead on the black wire and take the black probe off of the white wire. Place the black probe on the white wire.

Step 3 connect black fan wire to the black hot wire. You connect the fan wire motor in the terminal where the line wires connect, this is called the contactor. I go over how to eliminate the use of a second run capacitor when replacin.

A quick guide for installing 3 wire condenser fan motors. Secure it in the second terminal with your screwdriver. This video shows how to wire a furnace blower motor to an extension cord, how to reverse the rotation, what informa.
